Tractor
Powertrain

  • 01 Transmission
  • 02 Driveline Front Axle
01 Transmission
02 Driveline Front Axle

Transmission

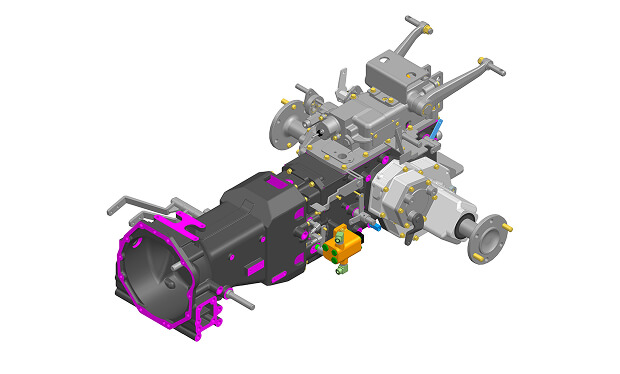

  • TB SERIES (25hp ~ 30hp)
    Details
    TB SERIES (25hp ~ 30hp)
    • Equipped with a powerful hydraulic cylinder capable of lifting 606 kgf based on 25 hp.
    • Main shift lever positioned on the right to maximize operator control and comfort.
    • High-efficiency HST minimizes power loss for optimal performance.

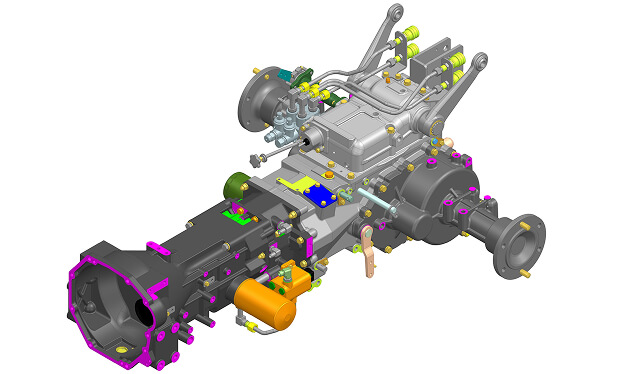

  • TC SERIES (25hp ~ 40hp)
    Details
    TC SERIES (25hp ~ 40hp)
    • Adopts a two-piece case for excellent durability and cost competitiveness.
    • Transmission allows independent and automatic PTO, maximizing convenience for compact missions.
    • Equipped with a powerful hydraulic cylinder capable of lifting 1,112 kgf with a 40 hp engine.
  • TD SERIES (40hp ~ 60hp)
    Details
    TD SERIES (40hp ~ 60hp)
    • Equipped with an advanced H-shuttle transmission, allowing forward and reverse movement without operating the main clutch.
    • Transmission with an attached horizontal control cylinder for automatic implement posture adjustment.
    • Transmission lifting capacity increased with optional auxiliary lift cylinder (standard 9.29 kN ▶ optional 12.0 kN)
    • High-durability transmission made with ductile cast iron material.

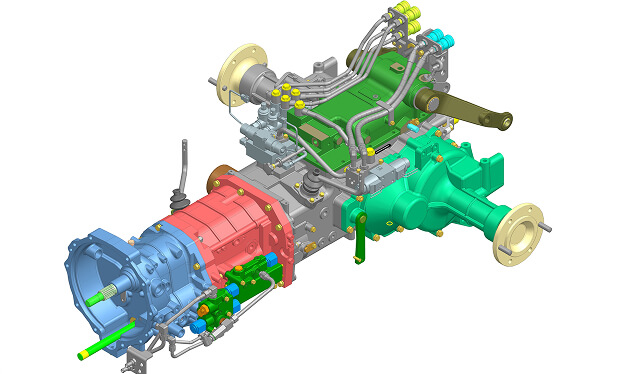

  • TE SERIES (45hp ~ 60hp)
    Details
    TE SERIES (45hp ~ 60hp)
    • Adopts a 3-stage PTO structure for versatile operations (compatible with independent and automatic PTO via the transmission)
    • Transmission equipped with an external lift cylinder to enhance serviceability and lifting capacity.
    • Transmission designed with hydraulic outlets to support various operations (up to 4 front / 4 rear)
  • TF SERIES (60hp ~ 85hp)
    Details
    TF SERIES (60hp ~ 85hp)
    • Transmission features a reverse PTO function for improved convenience in implement operations (“F” 3rd gear / “R” 1st gear)
    • Equipped with an ultra-precise power shuttle transmission, allowing forward and reverse movement without operating the main clutch.
    • Adopts a high-strength external lift cylinder to enhance serviceability and increase lifting capacity.
    • Transmission with an attached horizontal control cylinder for automatic implement posture adjustment.

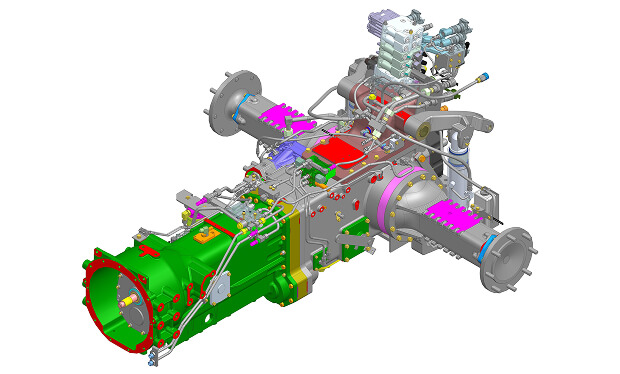

  • TE SERIES (80hp ~ 140hp)
    Details
    TE SERIES (80hp ~ 140hp)
    • Increased pump capacity and wider selection range with a gear pump designed for transmission installation.
    • Transmission capable of meeting diverse customer requirements, including shuttle, high–low, and main gear shifts.
    • External hydraulic outlets supporting various operations (up to 6 front / 6 rear)
    • External lift cylinders delivering strong lifting power (lifting capacity: 3,738 kgf for 100 hp models)
Contact Us

Driveline Front Axle - Sub Compact

  • TB 110A/TB200A
    TB 110A/TB200A
    • 25hp기준 606Kgf를 승강할 수 있는 강력한 유압실린더 탑재
    • 주 변속 레버를 우측으로 배치하여 완성차의 운전 조작성 극대화
    • 고효율 HST 탑재로 동력 손실 최소화
  • TD200A
    TB SERIES (25hp ~ 40hp)
    • "2" piece 케이스 채택으로 우수한 내구성 및 원가 경쟁력 확보
    • 독립 PTO 및 자동 PTO 구현이 가능한 트랜스미션을 통해 소형 미션의 편의성 극대화
    • 40hp기준 1,112Kgf를 승강할 수 있는 강력한 유압실린더 탑재

Driveline Front Axle - Compact

  • TC200A
    TC200A
    • 25hp기준 606Kgf를 승강할 수 있는 강력한 유압실린더 탑재
    • 주 변속 레버를 우측으로 배치하여 완성차의 운전 조작성 극대화
    • 고효율 HST 탑재로 동력 손실 최소화
  • TE130A
    TE130A
    • "2" piece 케이스 채택으로 우수한 내구성 및 원가 경쟁력 확보
    • 독립 PTO 및 자동 PTO 구현이 가능한 트랜스미션을 통해 소형 미션의 편의성 극대화
    • 40hp기준 1,112Kgf를 승강할 수 있는 강력한 유압실린더 탑재

Driveline Front Axle - Utility & Agriculture

  • TG110A/TG300
    TG110A/TG300
    • 25hp기준 606Kgf를 승강할 수 있는 강력한 유압실린더 탑재
    • 주 변속 레버를 우측으로 배치하여 완성차의 운전 조작성 극대화
    • 고효율 HST 탑재로 동력 손실 최소화
  • TG LSD
    TG LSD
    • "2" piece 케이스 채택으로 우수한 내구성 및 원가 경쟁력 확보
    • 독립 PTO 및 자동 PTO 구현이 가능한 트랜스미션을 통해 소형 미션의 편의성 극대화
    • 40hp기준 1,112Kgf를 승강할 수 있는 강력한 유압실린더 탑재

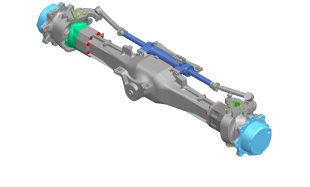

  • TF 120A
    TF 120A
    • "2" piece 케이스 채택으로 우수한 내구성 및 원가 경쟁력 확보
    • 독립 PTO 및 자동 PTO 구현이 가능한 트랜스미션을 통해 소형 미션의 편의성 극대화
    • 40hp기준 1,112Kgf를 승강할 수 있는 강력한 유압실린더 탑재
Contact Us
